Product Details
＋

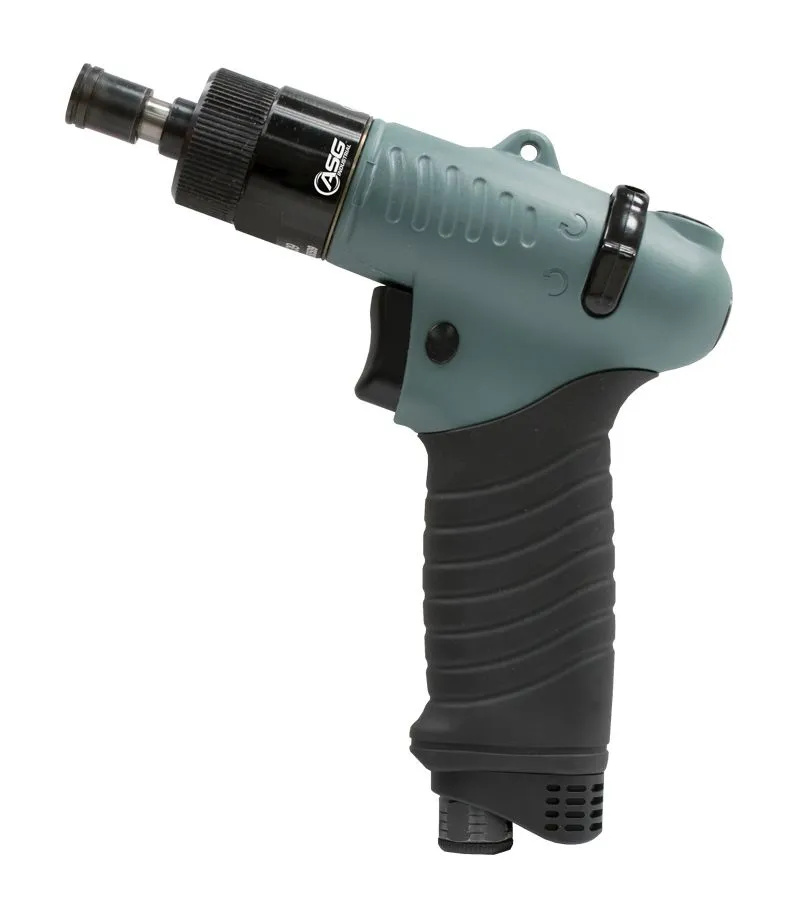

ASG H Series positive drive pneumatic screwdrivers offer affordable productivity. H Series tools feature a unique ergonomic thermoplastic design to provide comfort and gripping power, and are reversible. Torque output is determined by the force applied by the user.
- Light weight, ergonomic composite housing
- Image may vary slightly from actual product
Specifications
- Model No.: HPS39
- Operation: Trigger Start
- Body Style: Pistol Grip
- Clutch Type: Positive Clutch
- Torque: 0.85 to 4.0 N·m (7.5 to 35.4 lbf·in)
- Free Speed: 1600 rpm
- Drive Type: 1/4" Hex
- Air Inlet: 1/4" NPT
- Min. Hose I.D.: 3/16" (5 mm)
- Air Consumption: 10 cfm (4.7 I/sec)
- Operating Pressure: 90 PSI (6.2 bar)
- Noise Level ±2dBA: 72
- Length: 6.3" (160 mm)
- Weight: 1.2 lb. (0.55 kg)
- Height: 5.6" (142 mm)
- Warranty: 1 Year
