Features

• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
• Conveyor Bed parallelism is easily adjusted by turning the dial on the outside of the bed with no tools required
• Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

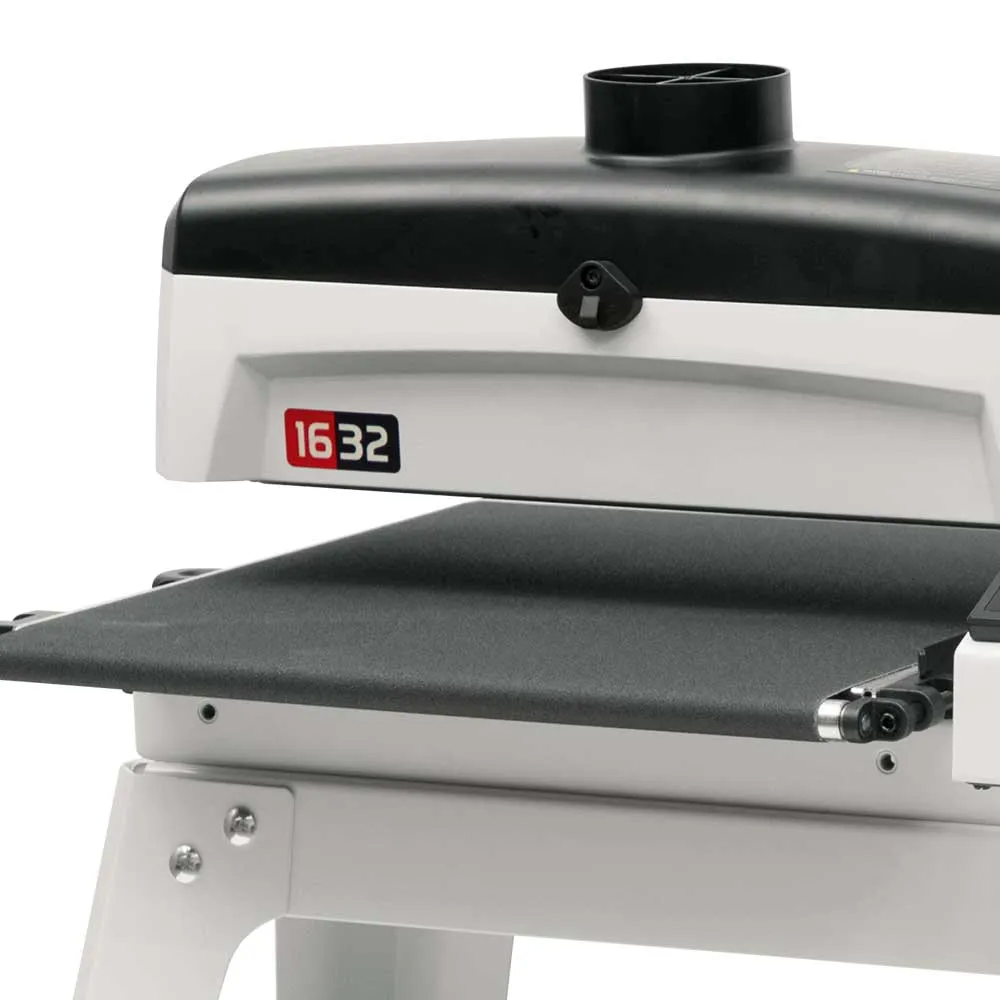

• Dust hood includes an integrated channel that mirrors the shape of the drum and directs the chips and dust to the 4” collection port
• Precision machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat damage
• Precision flattened reinforced steel conveyor bed
• One rotation of the top position handwheel adjusts the drum height by 1/16”
• Redesigned conveyor system pulls the workpiece through the sander instead of pushing
• The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
• Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
• Toolless abrasive take-up clips make changing abrasives quick and easy
• Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
• Separate feed and drum motors provide independent control, optimizing the performance of the sander
• Conveyor belt TRACKERS reduce the need for manual belt adjustments

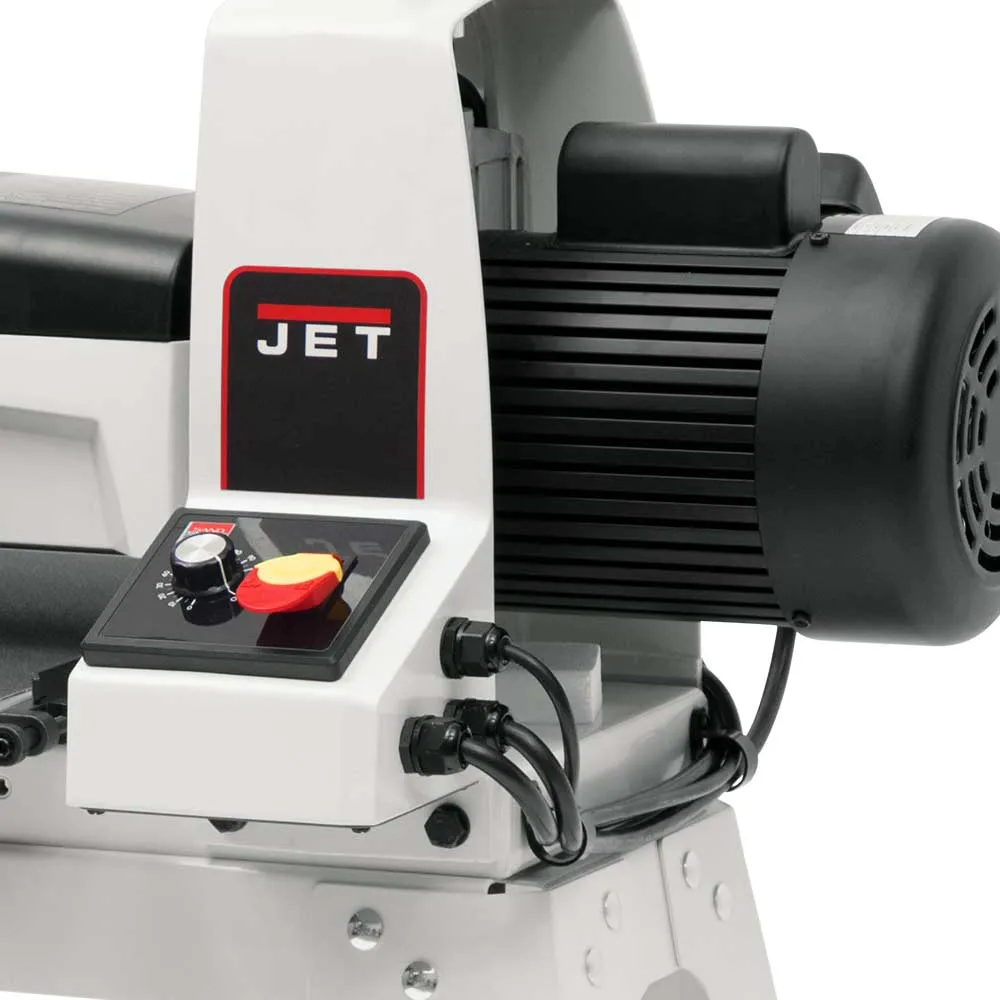

• Integrated on/off switch and variable speed control knob are conveniently located

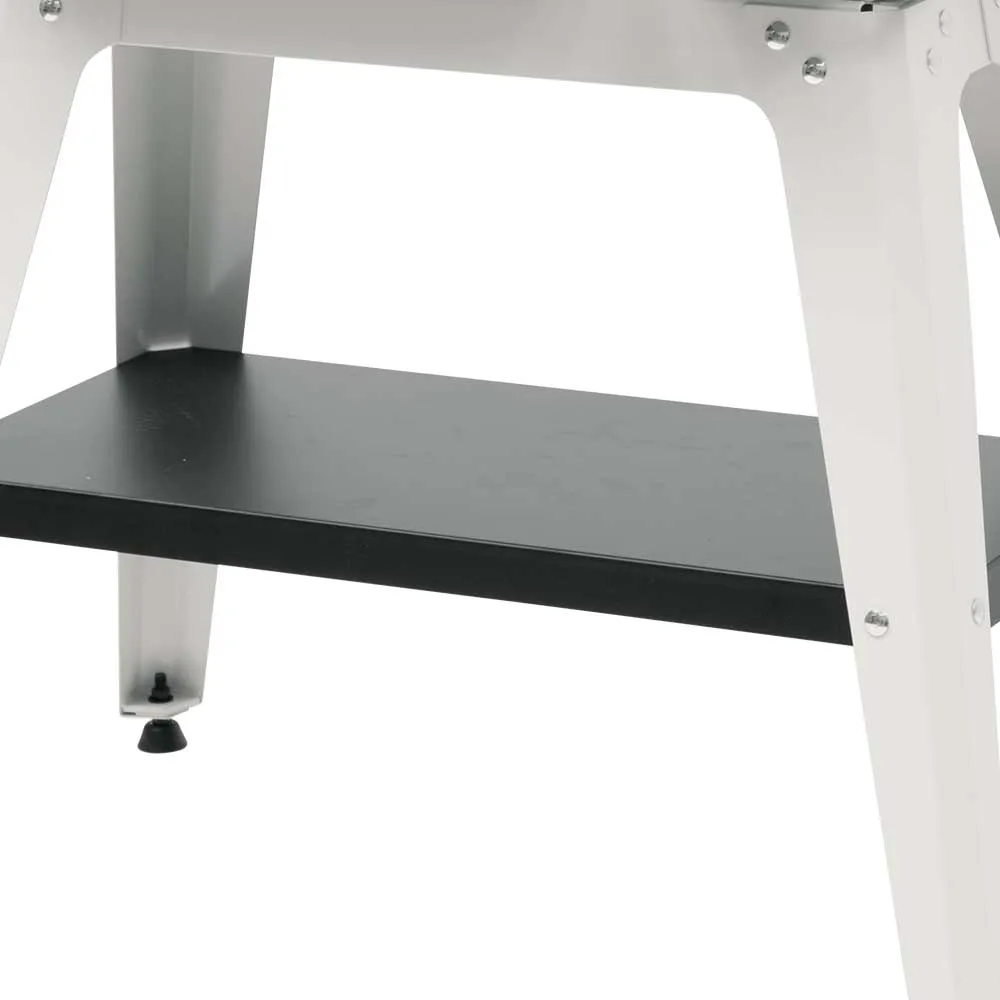

• Stand features a 20" x 37" footprint to increase stability and has a storage shelf and pre-drilled holes for casters
• Drum is easily removable
• Drum utilizes sealed and permanently lubricated ball bearings for longer life

What's in The Box

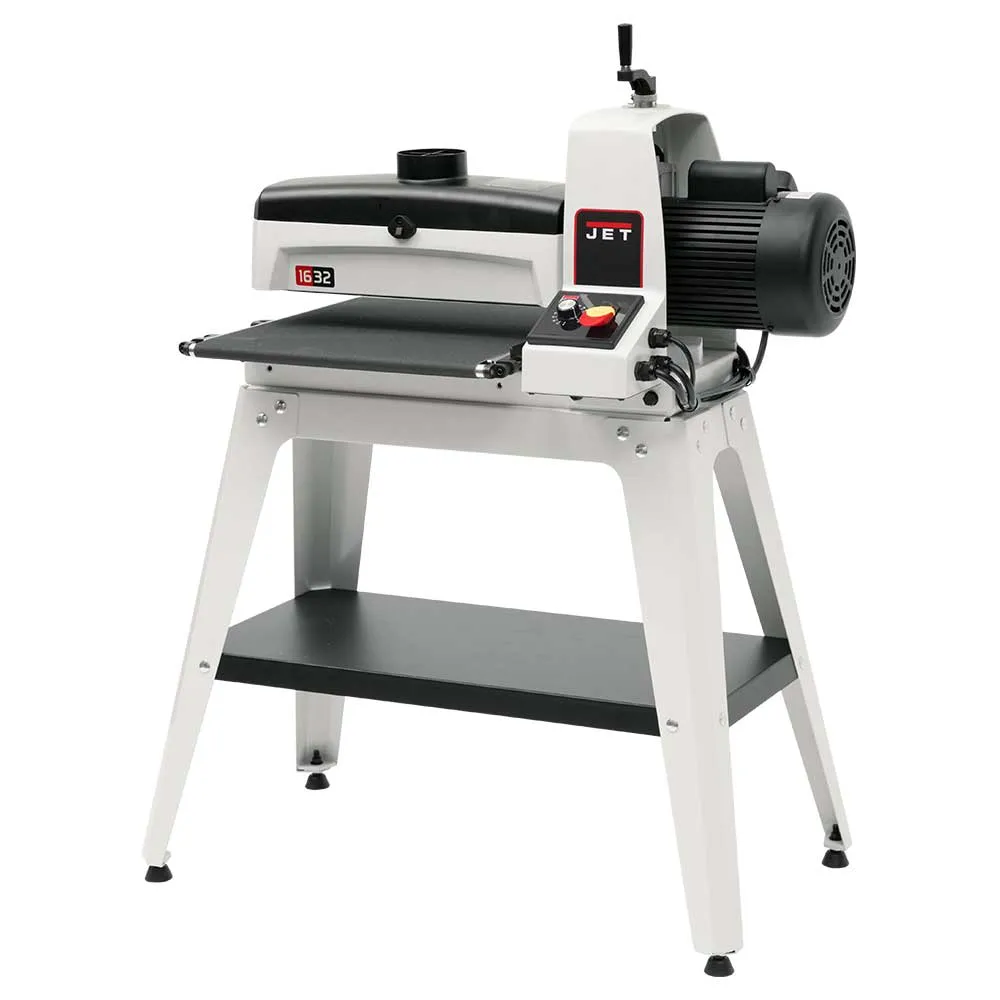

• Jet 1632 20 Amp Corded SandSmart Drum Sander w/ Woodworking Stand - 723520K
• Owner's Manual

Warranty

• 5 Years Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications
