Product Details
＋

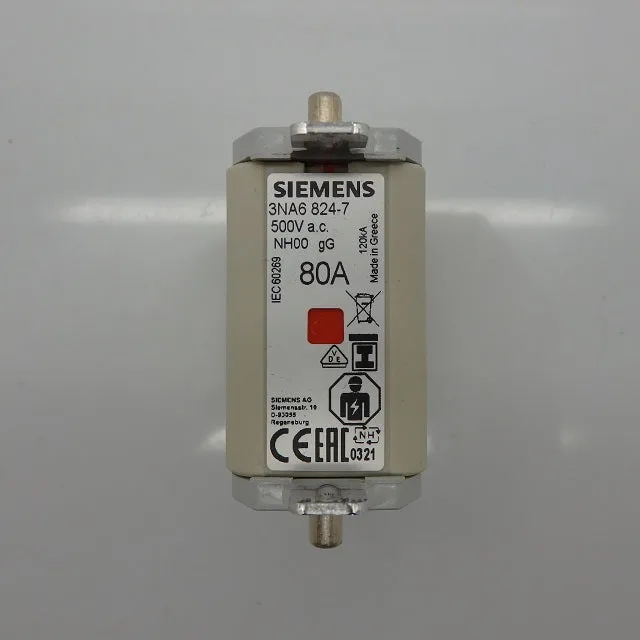

Siemens 500VAC 00 NH 80A gG Centred Tag Fuse 3NA6824-7
Features:
- NH fuses with combination sensors
- With insulated grip tabs
- Operating class gG (for cable and line protection)
- For selective line protection and system protection in functional building, industry and power supply companies
Specifications:
- Fuse Standard CSA 22.2 No.106 File No. 1710842, DINVDE 0636, DINVDE 0636-2, EN 60269-1, IEC 60269-1, IEC 60269-2
- Fuse Size 00
- Current Rating 80A
- Voltage Rating 500V ac
- High Rupture Capacity Yes
- Overall Length 80mm
- Body Width 30mm
- Body Length 54mm
- Application Category gG
- Fuse Type NH
